Technical Datas :

Temperature range : -65～+165℃ (PE Cable -40～+85℃)

Impedance : 50 Ohm

Frequency Range : DC～12.4GHz(semi-rigid cable 0～18GHz)

Working Voltage : 335V max

Withstand Voltage : 1000V rms

Contact resistance Center Contact : ≤3mΩ

Contact resistance Outer Contact : ≤2mΩ

Insulation resistance : ≥5000 MΩ

Insertion loss : ≤0.15 dB/6GHz

Durability(mating) : ≥500 cycles

MATERIAL & PLATING：

Shell : gold lated brass

Contact pin : gold lated brass

Socket : gold plated beryllium

Elastic contact : gold plated beryllium

Insulator : PTFE

Crimp ferrule : nickel or gold plated copper

O-ring sealing : 6146 silastic

VSWR :

Straight flexiable cable : ≤1.10+0.002f

Straight semi-rigid cable : ≤1.05+0.001f

Right angle flexiable cable : ≤1.20+0.003f

Right angle semi-rigid cable : ≤1.10+0.001f

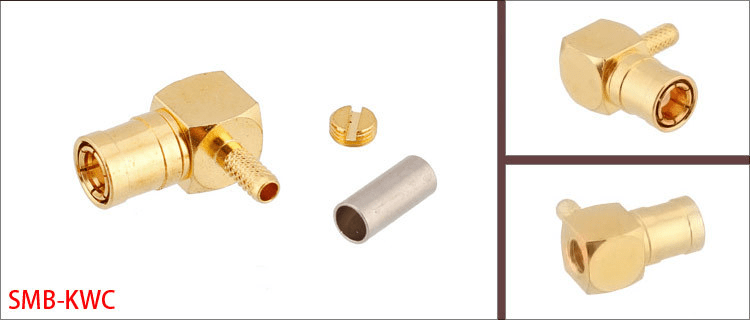

Detail Picture :
