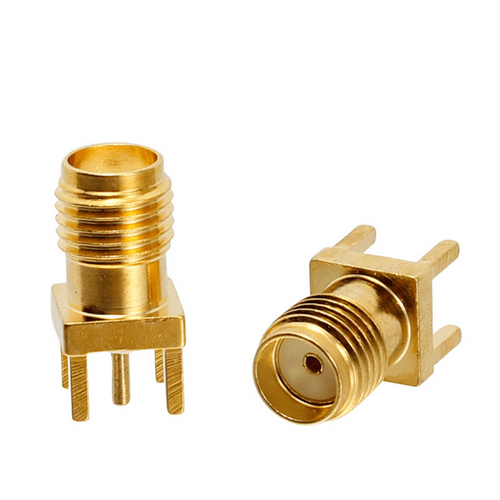

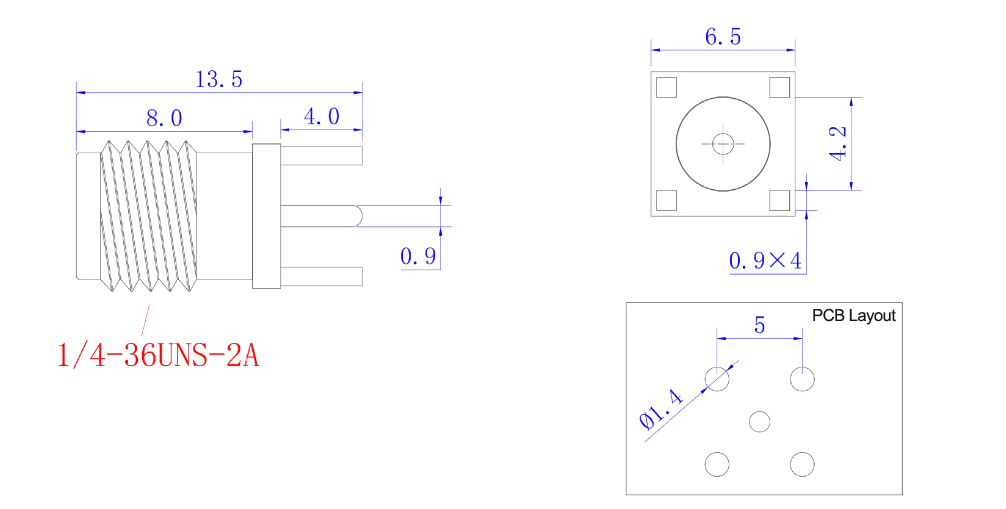

Dimension : in mm

Technical Features :

Temp.range :  -65～+165°C (PE Cable -40～+85°C)

 Vibration  MIL-STD-202,Method 213

Impedance 50Ω

Frequency Range : DC～12.4GHz( semi-rigid cable 0～18GHz)

Working Voltage  335V max

Withstand Voltage 1000V rms

Contact resistance : Center Contact ≤ 3 mΩ , Outer Contact  ≤ 2 mΩ

Insulation resistance  ≥ 5000 MΩ

 Insertion loss ≤0.15 dB/6GHz

 VSWR : Straight flexible cable ≤1.10+0.002f , semi-rigid cable ≤1.05+0.001f

 VSWR : Right angle flexible cable ≤1.20+0.003f . semi-rigid cable ≤1.10+0.001f

Durability(mating) ≥500次（cycles）

MATERIAL & PLATING ：

Shell  : gold plated brass

Contact pin : gold plated brass

Socket : old plated beryllium

Elastic contact : gold plated beryllium

Snsulator : PTFE

Crimping suite : nickel or gold plated copper alloy

O-ring sealing : 6146 silastic
