SMA Male To BNC Female Coaxial Cable
The RF coaxial extension cable has one end SMA male connector , the other end BNC female connector , made of RG316 cable , default cable length is 10CM , and other length could be customized , 50 Ohm , could be used for antennas , RF equipments .
More Details
Technical Paramters :
Connector A : SMA
Connector A gender : male
Connector A material : gold plated brass
Connector B : BNC
Connector B gender : female
Connector B material : nickel plated brass
Resistance : 50 Ohm
VSWR : ≤1.3@DC-6G
Cable type : RG316
Cable color : brown
Cable length : customized

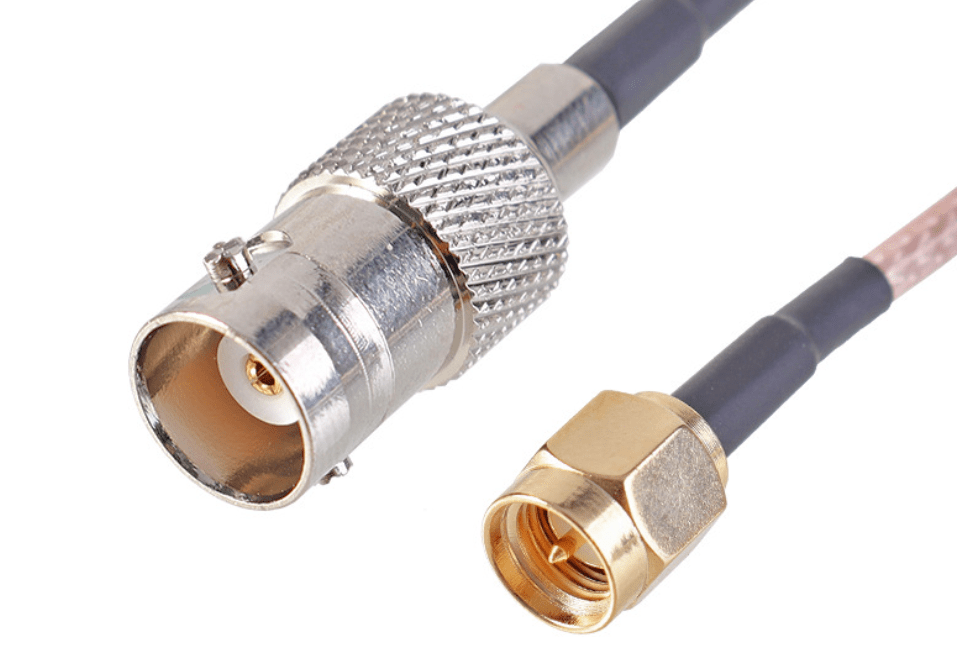

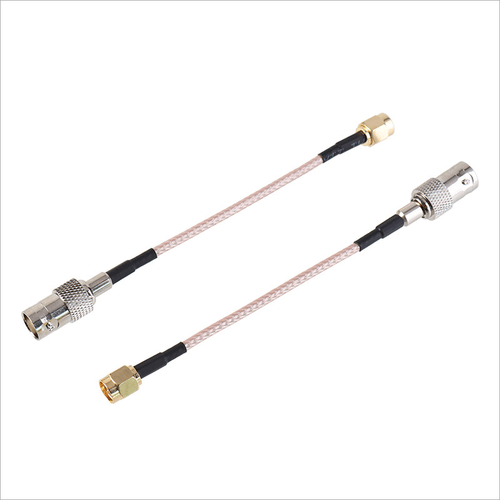

Detail Picture :
