GPS Timing Antenna
The high-gain GPS timing antenna is one type of GNSS antenna , it has up to 45dB LNA gain , has strong anti-interference performance , work at frequency range 1551MHZ-1615MHZ , could be used for GPS , Galileo , Glonass and DBS .
The antenna is IP67 waterproof , could be used for electric power , water conservancy , transportation , communications , ships .
The coaxial cable length could be customized , the RF connector at the cable end could be N-F or as your requirement .
The antenna is IP67 waterproof , could be used for electric power , water conservancy , transportation , communications , ships .
The coaxial cable length could be customized , the RF connector at the cable end could be N-F or as your requirement .
More Details
Technical Parameters :
- Product name : timing antenna
- Frequency range : 1551MHZ-1615MHZ , GPS , BDS , Galileo , Glonass
- Impedance : 50 Ohm
- Polarization Right : Circular Polarization
- LNA Gain : 45±2dB
- VSWR : ≤1.5
- Voltage supply : 3.0~12VDC
- Current : <30mA
- Power : (max.) 0.36W
- Operating temperature : -40°C to +85°C
- IP rating : IP67
- Connector : TNC-F
- Extension cable : customized length
- Shell Material : ABS
- Dimension 110*116*94mm
- Weight : 0.62Kg include braket
- Color : White

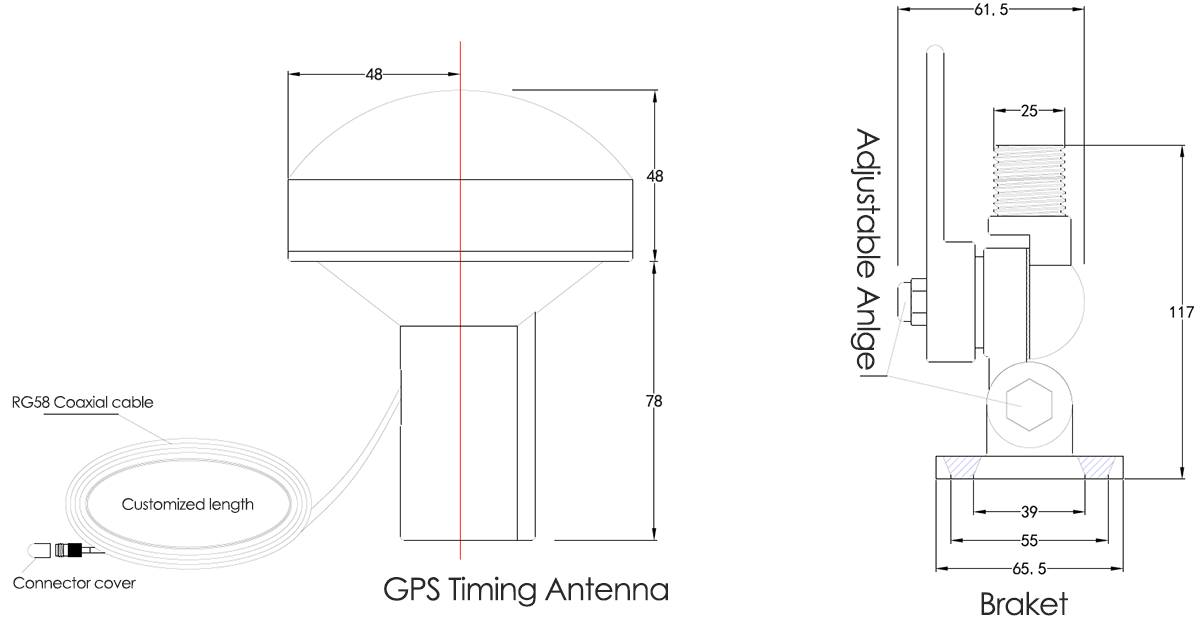

Antenna Dimension :

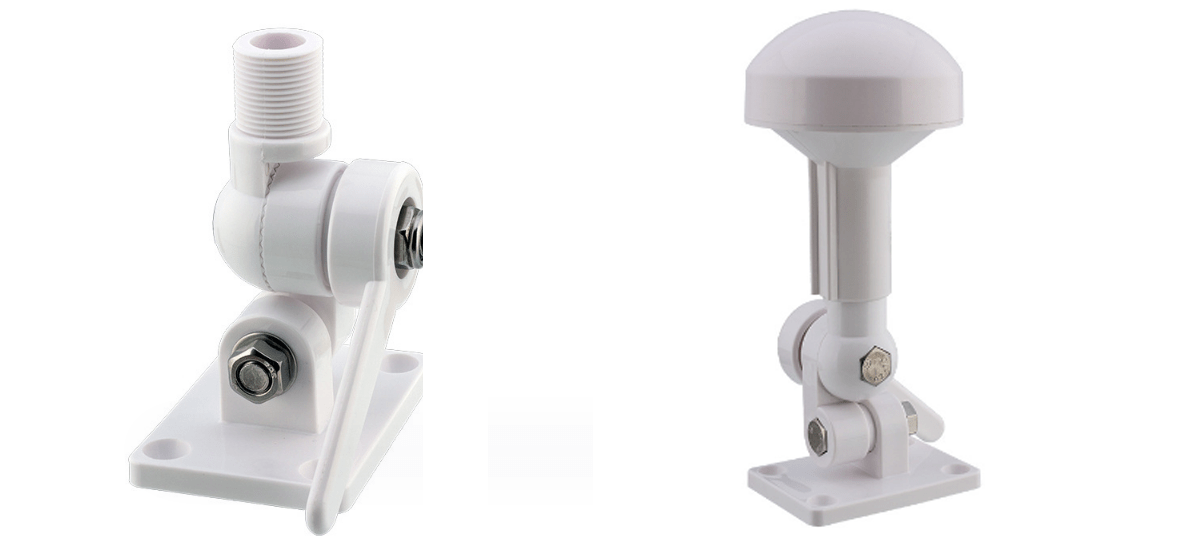

Timing Antenna Mount Braket :

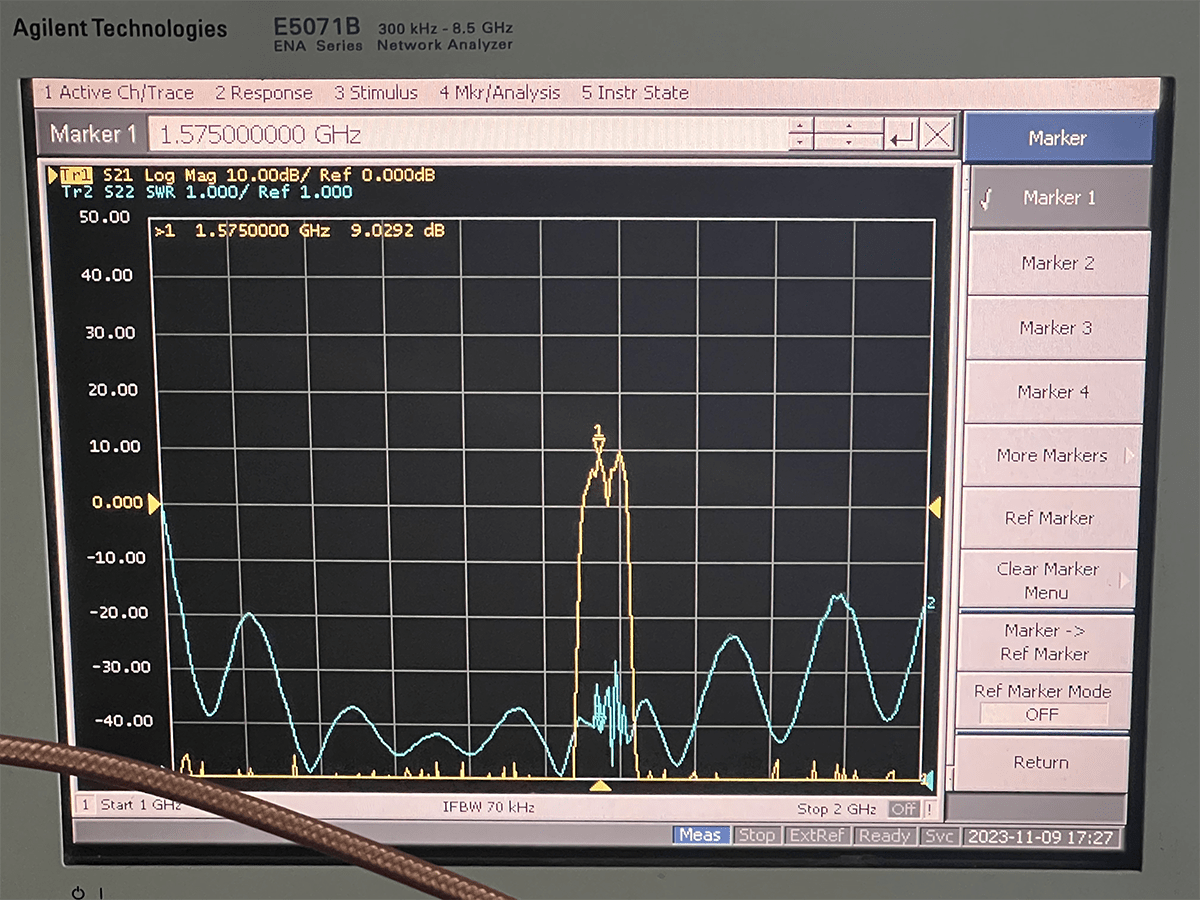

Parameter Test :

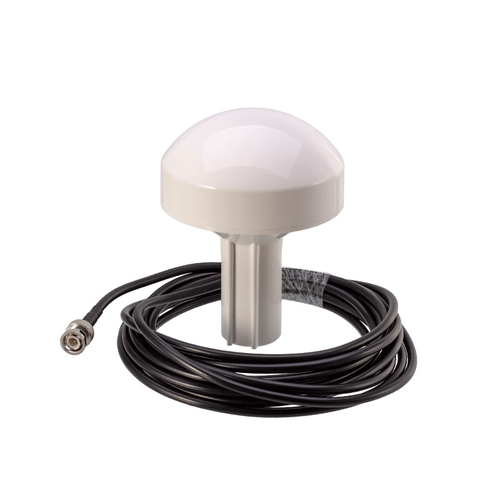

GPS Timing Antenna Pictures
