Farming Drone Helix RTK Antenna
The helix RTK antenna could work at The helix RTK antenna could work at GPS L1/L2 , BDS B1/B2/B3 , GLONASS G1/G2 , Galileo E1/E5b , suitable for farming drones , such as aerial photography and remote telemetry .
More Details
Teachnical Parameters :
- Antenna name : Helix RTK Antenna
- Patch Architecture : Ouadrifilar Helix
- GPS : L1 , L2
- GLONASS : G1 , G2
- BDS : B1 , B2 , B3
- Galileo : E1 , E5b
- Peak Gain : ≥2.0 dBi
- Polarization : RHCP
- Axial Ratio@zenith : ≤3dB
- Azimuth Coverage : 360°
- Impedance : 50 ohm
- LNA Gain : 32±2.0dB (Typ.@25°C)
- Noise Figure : ≤1.5 dB@25°C , Typ
- Output VSWR : ≤l.8:1 , typ. 2.0:l max
- Operation Voltage : 3.0~16.0V DC
- Operation Current : ≤45mA
- Connector : SMA
- Housing Material : ABS+PC
- Weight : 29g
- Installation : screws
- Operating Temperature : 40C~+85'C

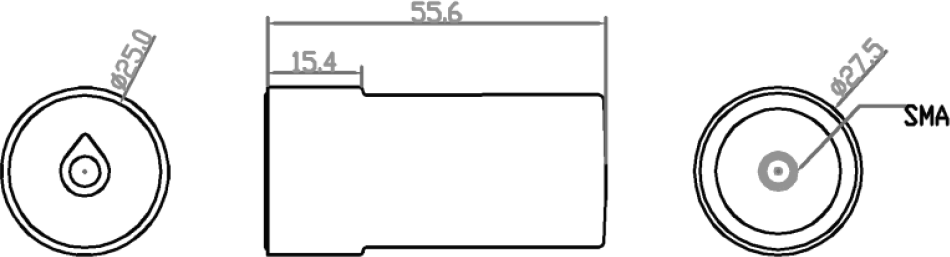

RTK Helix Antenna Dimension :

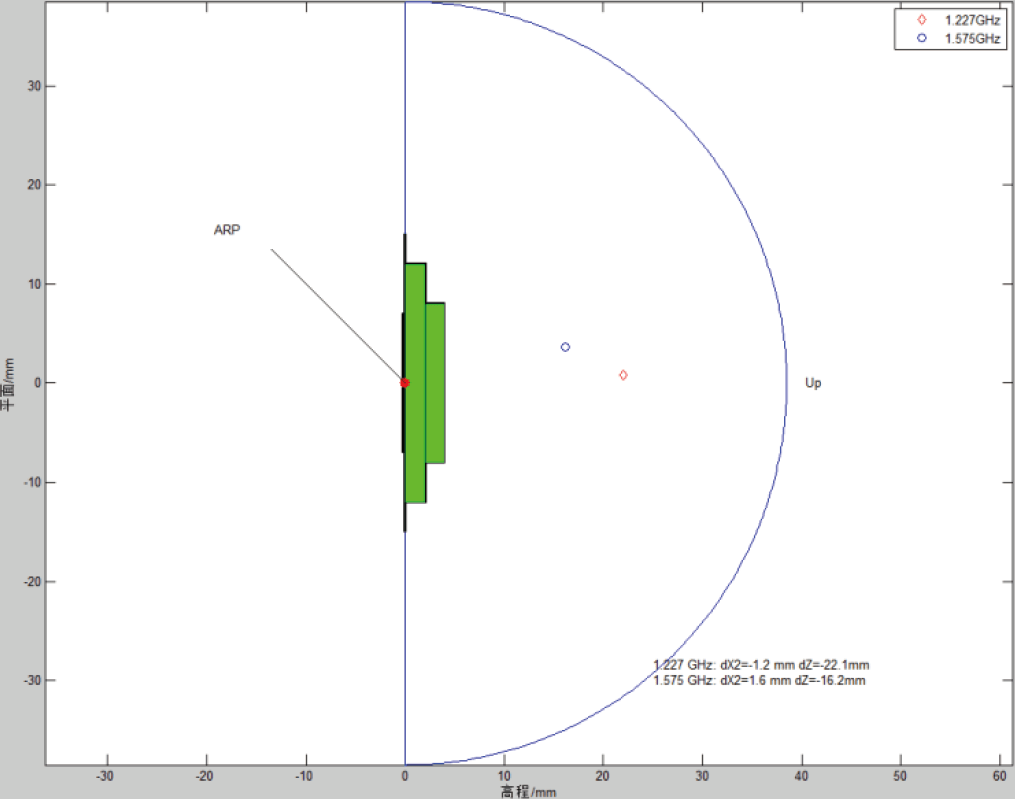

Phase Center Of The Antenna :
The antenna exhibits exceptional stability in its phase center, providing accuracy at the centimeter level. Its high gain, coupled with ultralow signal loss and a wide beam width, significantly enhances positioning accuracy.

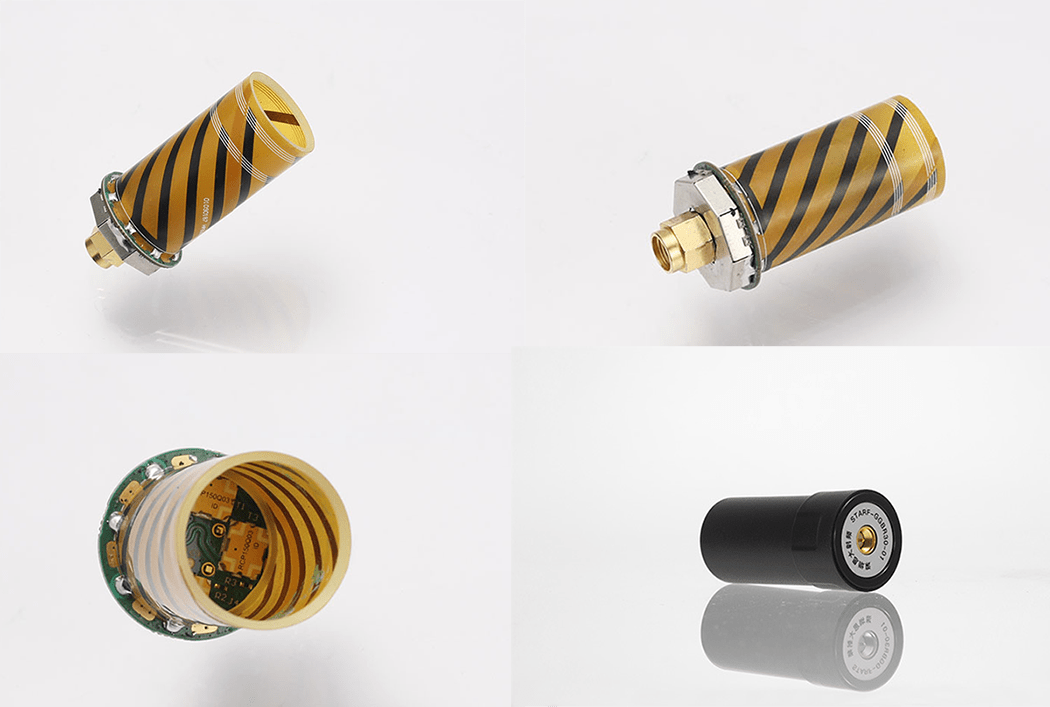

Product Details :
